Malleable iron fittings are a type of durable threaded pipe connector designed for the high-pressure transportation of water, gas, oil, steam and air. Malleable iron pipe fittings are used in a wide variety of applications including plumbing, heating and gas installation, HVAC technology, fire suppression systems and industrial and mechanical engineered piping.
What is blackheart and whiteheart malleable iron?
According to the BMTFA¹ (British Metals Tubes and Fittings Association) malleable iron fittings are available in both whiteheart and blackheart forms, and both perform satisfactorily in service. However, the association also notes that each material type can be manufactured in a range of different material grades, meaning not all fittings have the same technical properties or performance characteristics.
The distinction between the two lies in the manufacturing process. Whiteheart malleable iron is produced using a longer, higher-temperature annealing process that decarburises the outer layer of the casting. If the fitting is cut in half, the core appears silvery white, giving the material its name. This process improves ductility and machinability while producing a smoother external surface that provides excellent adhesion for galvanising.
Blackheart malleable iron, by comparison, has a grey core and also offers good ductility. However, its rougher surface makes achieving a high-quality galvanised finish more challenging than with whiteheart fittings.
GF’s whiteheart fittings are manufactured under the standard BS EN 10242 ‘Threaded pipe fittings in malleable cast iron’. With the recent release of the latest update to the standard BS EN 10242:2025, the older less encompassing standards BS 143 & 1256:1986 have been superseded and are now withdrawn.
A new table of permitted technical requirements for Malleable Iron fittings within BS EN 10242, now excludes fittings manufactured to design symbol B, and excludes lower classes of malleable iron.
GF’s Whiteheart fittings are manufactured to the highest strength classification detailed within BS EN 10242:2025, and when combined with their increased wall thickness, offer greater strength and pressure resistance than most other malleable iron fittings.
While both whiteheart and blackheart fittings are suitable for a wide range of plumbing, heating and industrial applications, GF has developed an enhanced manufacturing process for its whiteheart fittings, which improves galvanising characteristics, ensures higher strength and increased pressure tolerances, and so is GF’s recommended fitting type.
How is the quality and performance of malleable iron fittings controlled?

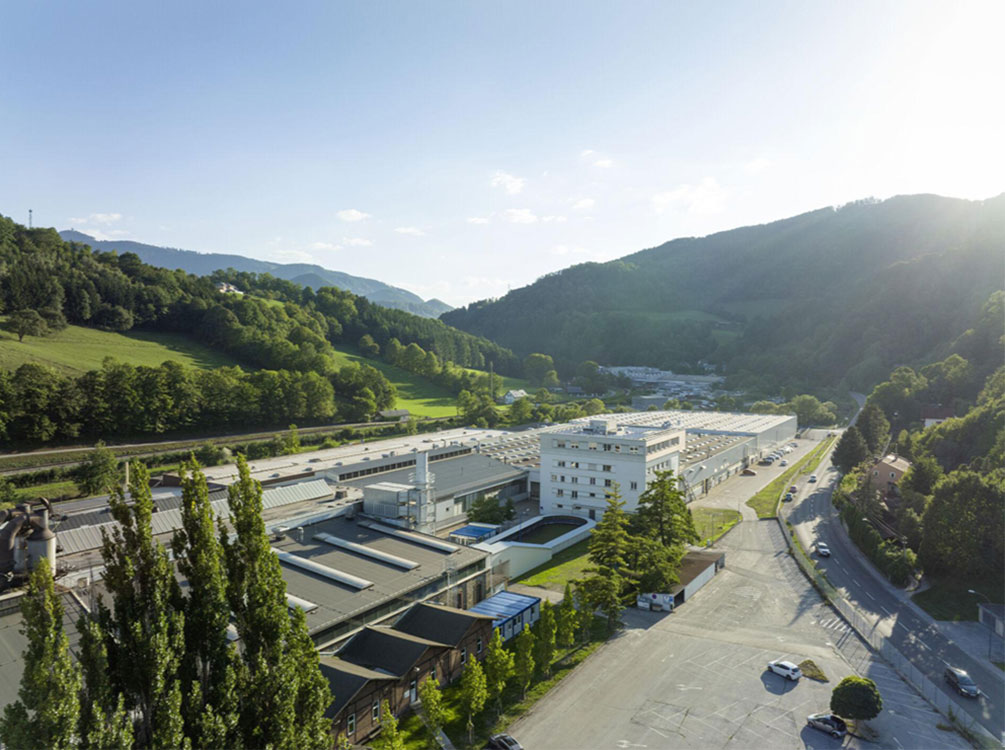

GF is almost exclusively the only supplier of whiteheart malleable iron fittings in the UK, manufacturing its fittings at its production facility in Traisen, Austria. The manufacturing process is designed to deliver consistently high-quality fittings while supporting sustainable production practices.
A key feature of the GF manufacturing process is its extended annealing cycle, which produces the whiteheart malleable iron structure. This longer, carefully controlled heat treatment decarburises the outer layer of the casting, improving ductility, machinability and surface quality while enabling the fittings to achieve the highest strength classification permitted within EN 10242:2025.
Quality assurance is embedded throughout production, with up to 12 quality inspections carried out across the manufacturing process, including a final pressure test for each and every fitting. Should a product fail any stage of inspection, the affected production batch is rejected, ensuring only compliant products leave the factory.
GF’s commitment to quality is demonstrated by its long manufacturing heritage. Since 1864, more than 11 billion GF malleable iron fittings have been installed worldwide across plumbing, heating, industrial and fire protection applications, providing a proven record of reliability and performance.
What are the benefits of GF’s enhanced thread design for malleable iron fittings?
GF malleable iron fittings incorporate an advanced thread design that has been developed to improve joint integrity, corrosion resistance and long-term reliability. Unlike conventional fittings that may contain “wash-out” threads, GF fittings feature fully cut precision threads, maximising thread engagement and reducing the amount of exposed, uncoated metal in galvanised fittings. This helps improve corrosion protection and reduces the potential for water to reach vulnerable areas of the fitting.
The fittings are manufactured with increased wall thickness around the threaded section, providing additional strength where the highest mechanical stresses occur during installation and service. This enables the fitting to withstand higher assembly loads and contributes to a more robust connection.
Each fitting is also machine chamfered at the leading edge of the thread. This chamfer guides thread sealing materials into the joint during assembly rather than pushing them ahead of the fitting, helping to produce a more effective seal and reducing the likelihood of leaks.
The extended annealing process used to produce GF’s whiteheart malleable iron improves machinability, allowing threads to be cut to exceptionally high precision. As a result, the fittings require less torque to make the watertight connection and can withstand up to 30% higher assembly forces, contributing to improved durability during assembly and throughout their service life.
The fittings are produced to tight dimensional tolerances, ensuring accurate thread geometry and reducing alignment deviations during installation. GF also manufactures its fittings to achieve an accurate clocking alignment, allowing adjacent fittings to align consistently when fully tightened, providing both improved installation accuracy and a neater finished pipework system.
How is the climate impact of manufacturing malleable iron fittings reduced?
GF ensures that sustainability is at the heart of the manufacturing process of malleable iron fittings. The fittings comprise of 96% iron with the remainder consisting of carbon and a small amount of other trace metals and elements. 100% of this iron comes from recycled sources. For example, old railway tracks that once carried millions of people are now trusted to carry services through miles of pipework.
All of the dry waste that results from the manufacturing process, over 2,100 tonnes per year, is recycled by working in conjunction with a partner in the cement industry.
GF runs its own water power plant (550 kW) at the river Traisen and gets power from two additional local water power plants that supply approximately 30% of ‘self-made’ electricity. A photovoltaic power plant generates 46 kWp and saves 20 tonnes of CO2 per year. The remaining electricity is a mix of 25.5% water, 51.5% gas, 10.4% wind and 12.6% biomass.
We have Environmental Product Declarations (EPDs) for our malleable iron fittings to give embodied carbon information to specifiers and to help us measure and drive further sustainability innovations throughout the business. We also offer CAD and BIM support to consultants to help with the design and specification process.
What range of malleable iron fittings does GF have available?

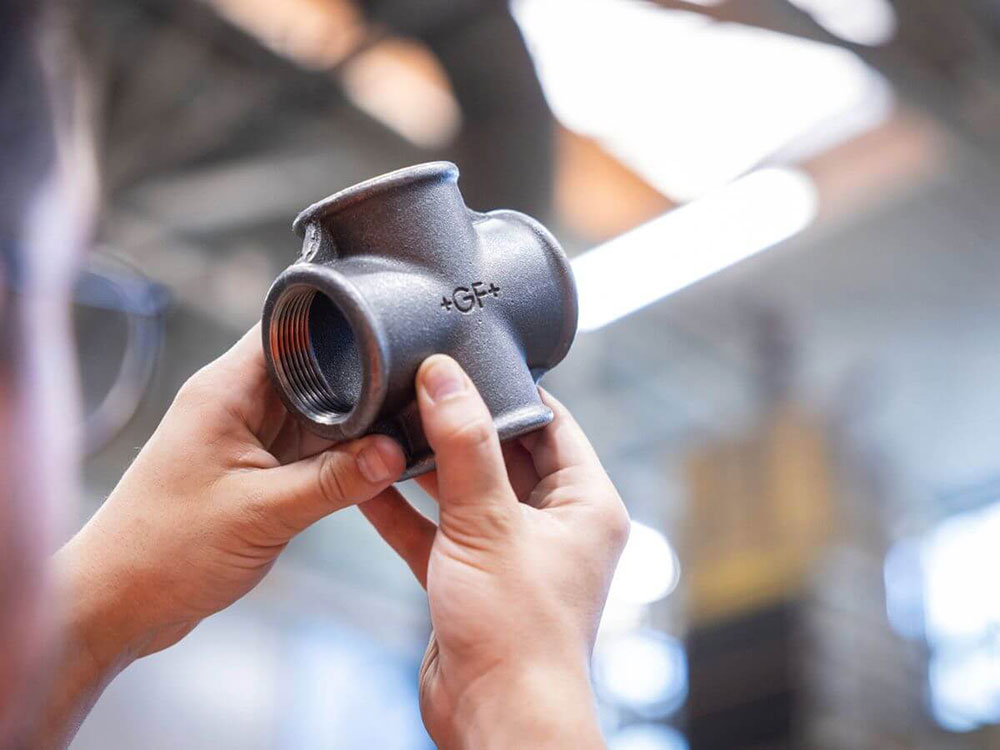

GF offers the most comprehensive range of malleable iron fittings available, providing designers and installers with the flexibility to specify the most appropriate solution for a wide variety of applications. The range comprises of more than 1,700 individual fittings, giving consultants and contractors extensive design freedom across plumbing, heating, cooling, industrial and fire protection systems. This provides a wealth of connection possibilities due to the breadth of the range.
The portfolio includes three principal product categories.

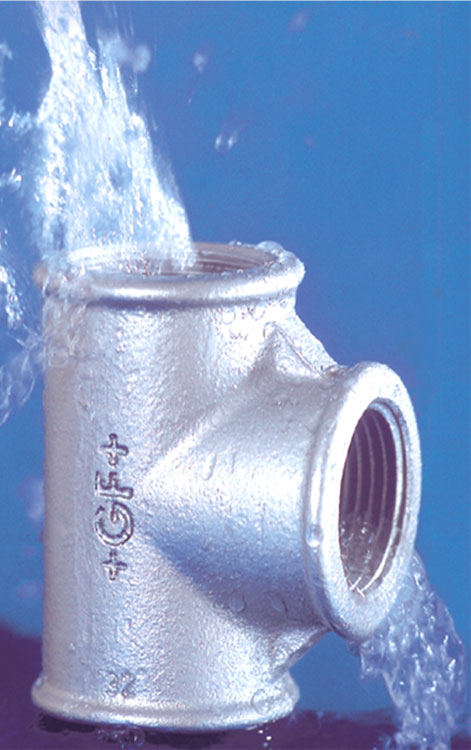

- Standard malleable iron fittings – These are available in both black and galvanised finishes. Approximately 60% of the overall range is supplied galvanised, providing enhanced corrosion protection for applications where increased durability is required.
- High-pressure fittings – Manufactured for applications requiring greater pressure resistance and available in both black and galvanised versions.
- Fire protection fittings – These are specifically developed to meet the requirements of fire suppression and sprinkler system installations.
The breadth of the GF range enables complete pipework systems to be specified from a single manufacturer, helping to simplify procurement, ensure product compatibility and provide greater flexibility when designing complex building services installations
What applications are GF malleable iron fittings suitable for?
Malleable cast iron fittings are used for conveying liquids and gases up to the pressure and temperature limits specified in the standards ISO 49 and BS EN 10242:2025. Unless otherwise specified, (see specially pressure tested fittings) the following working pressures and temperatures apply.

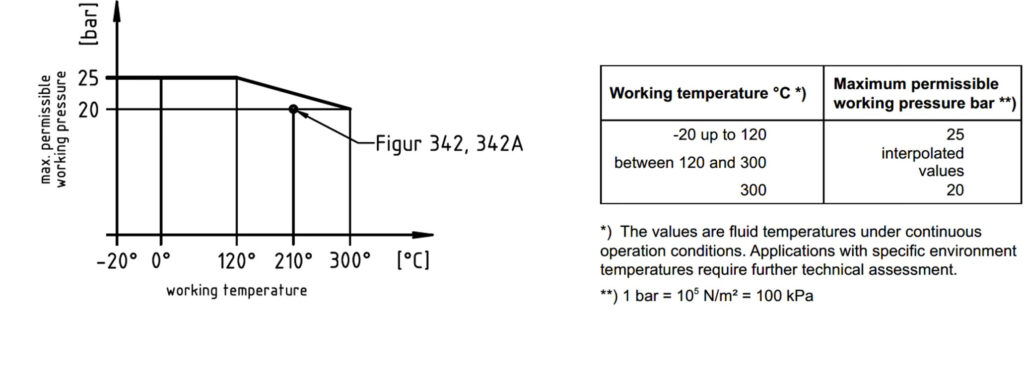

The graph above shows the maximum working pressure for GF malleable iron fittings. As the working temperature increases the maximum working pressure declines from 25 bar at temperatures above 120°C down to 20 bar at 300°C. Between 120°C and 300°C the maximum pressure has to be interpolated from the graph so at the 210°C point the maximum working pressure would be around 22 bar. The expected temperatures and pressures in a proposed system can then be compared to the graph to make sure that they are within safe working limits for the type of fitting chosen.
The GF range has fixings suitable for both high-pressure systems and fire applications. We place quality at the centre of our manufacturing process and apply rigorous controls at every stage of production to ensure consistently high standards. From material selection and casting through to annealing, machining, galvanising and final inspection, every process is carefully controlled to produce fittings that deliver reliable, long-term performance
GF offers comprehensive support throughout the project lifecycle, with BIM files, Environmental Product Declarations (EPDs) and experienced project teams available to help ensure specifications meet the latest standards and project requirements.
This 360° service is supported by:
- Specialist expertise in materials, engineering and production
- A proven track record of innovation
- Expert technical and project support at every stage
- Global presence and reliable, on-time delivery
- BIM and environmental data to support informed specification decisions
For help ensuring your specifications meet the latest standards or if you would like to find out more about our range of GF malleable cast iron fittings, please contact us today and our expert team will be happy to help.
